Selective pallet racking, engineered to your load chart
The workhorse system: 100% pallet selectivity, adjustable levels and load ratings from 500 kg to 5,000 kg per beam pair.
Direct access to every pallet, every time
Our Selective Pallet Racking system offers flexible storage in two configurations—pallet-based storage for easy forklift handling and deck-panel configurations for manual loading. This versatility allows the same robust racking structure to efficiently accommodate both palletized and loose goods, making it suitable for diverse warehouse and storage requirements
- 100% selectivity — no double handling
- Beam levels adjustable on a 75 mm pitch
- Bolt-free beam-to-upright connection with safety locks
- Load ratings from 500 kg to 5,000 kg per level
- Heights to 12 m; single, double and back-to-back runs
- Column guards, row-end barriers and pallet-support bars
- Powder-coated or galvanised finish options
- Supplied with layout drawings and load-notice plates

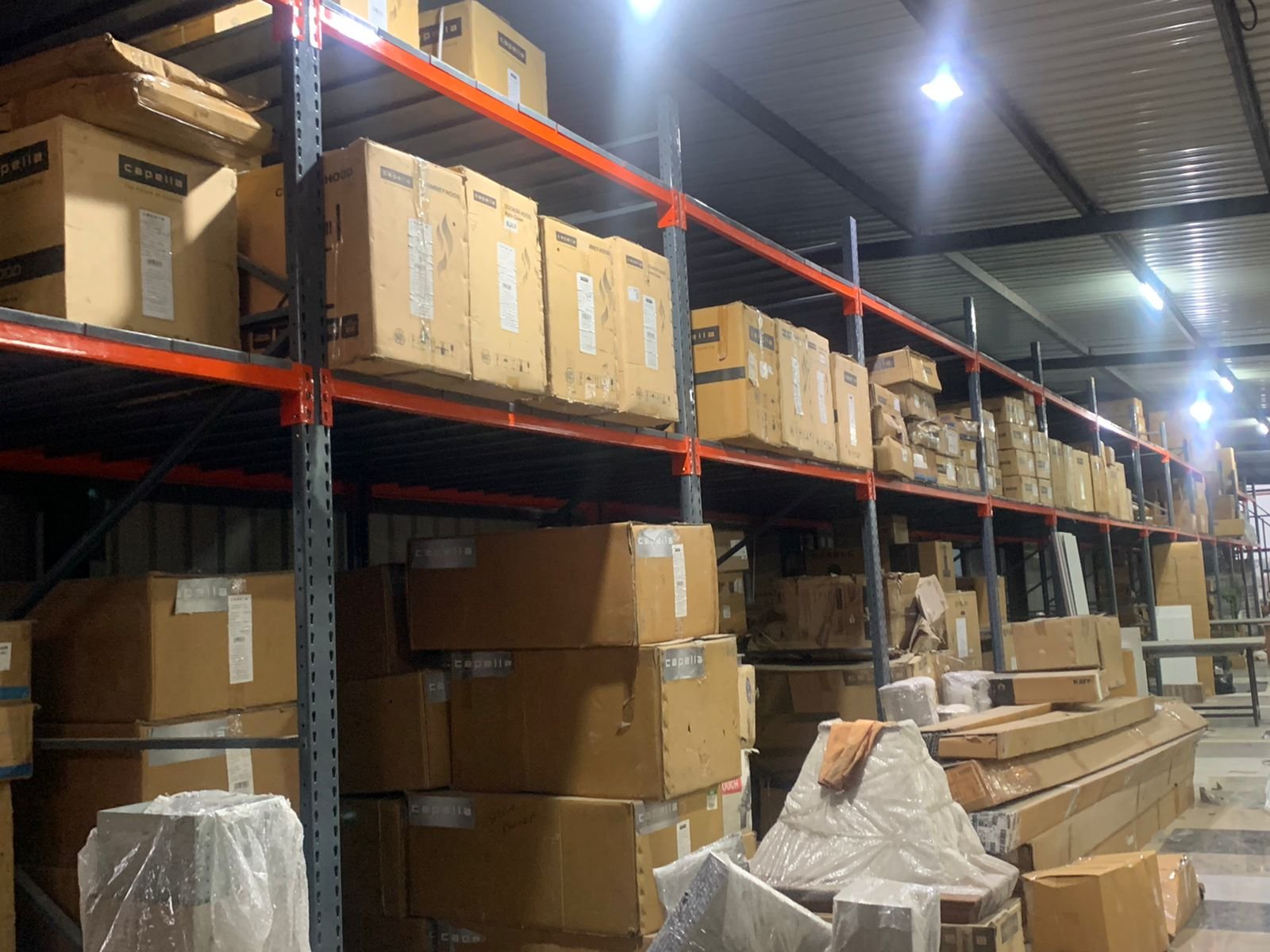

Bottom empty 6 mt height racks

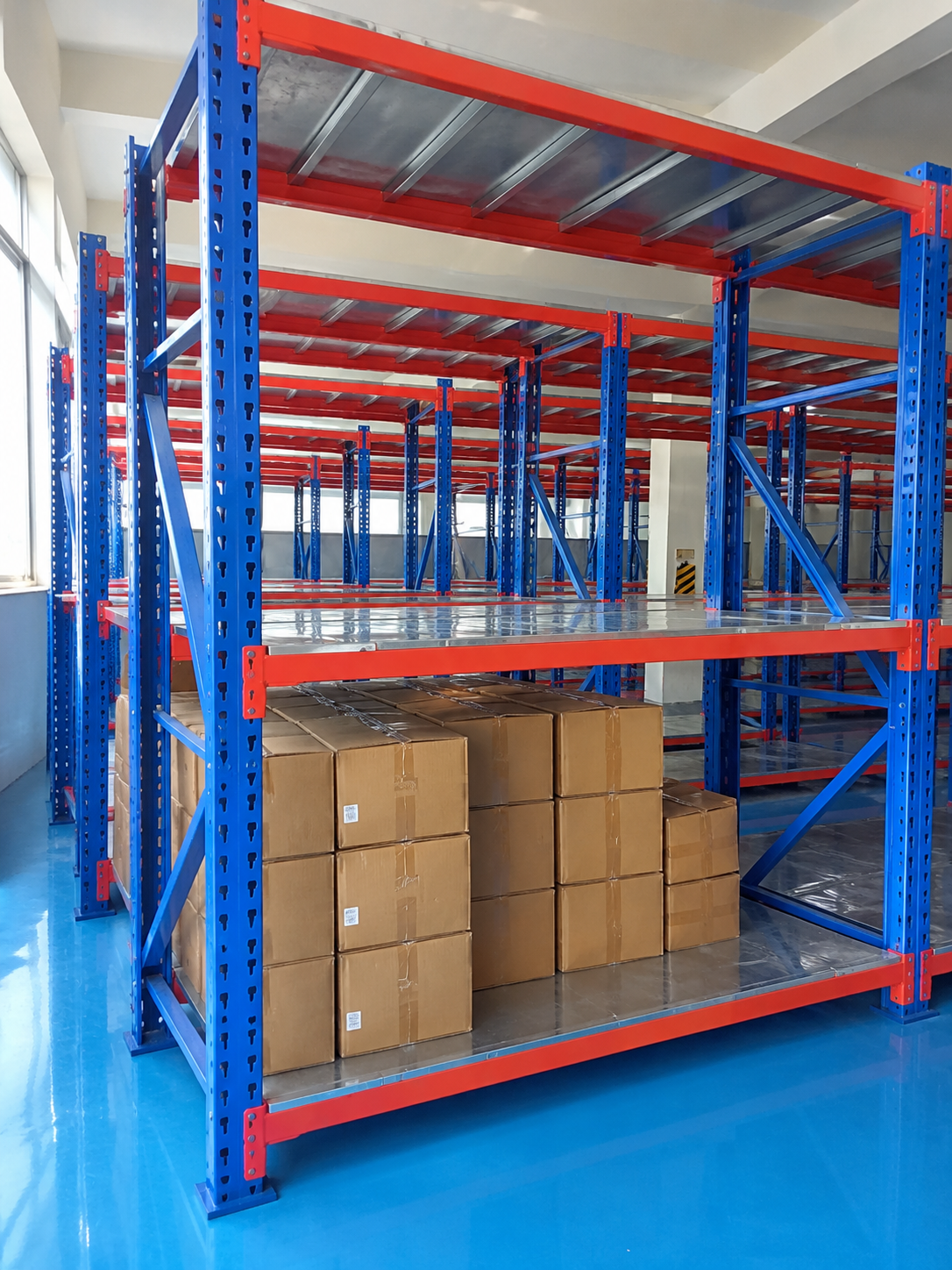

Racks with deck panel and mezzanine

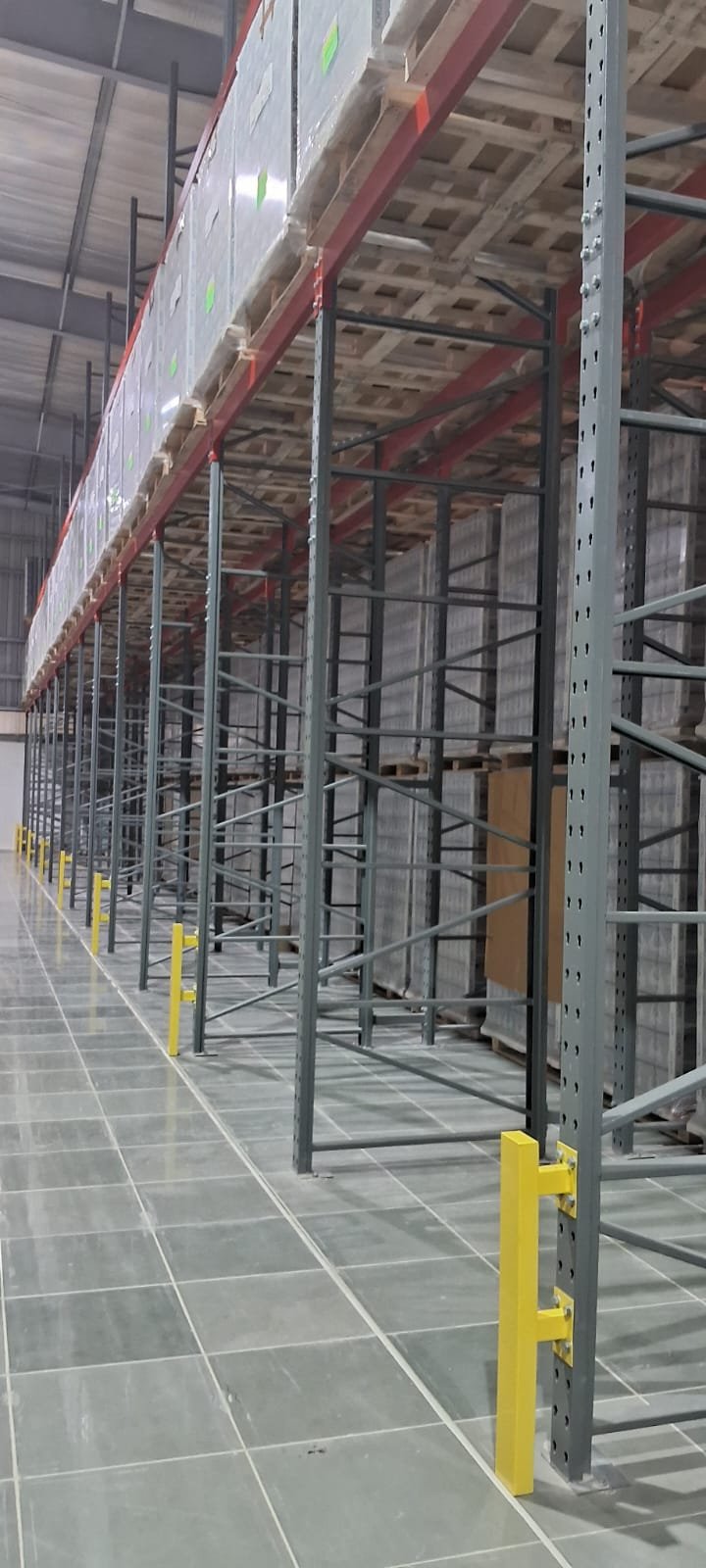

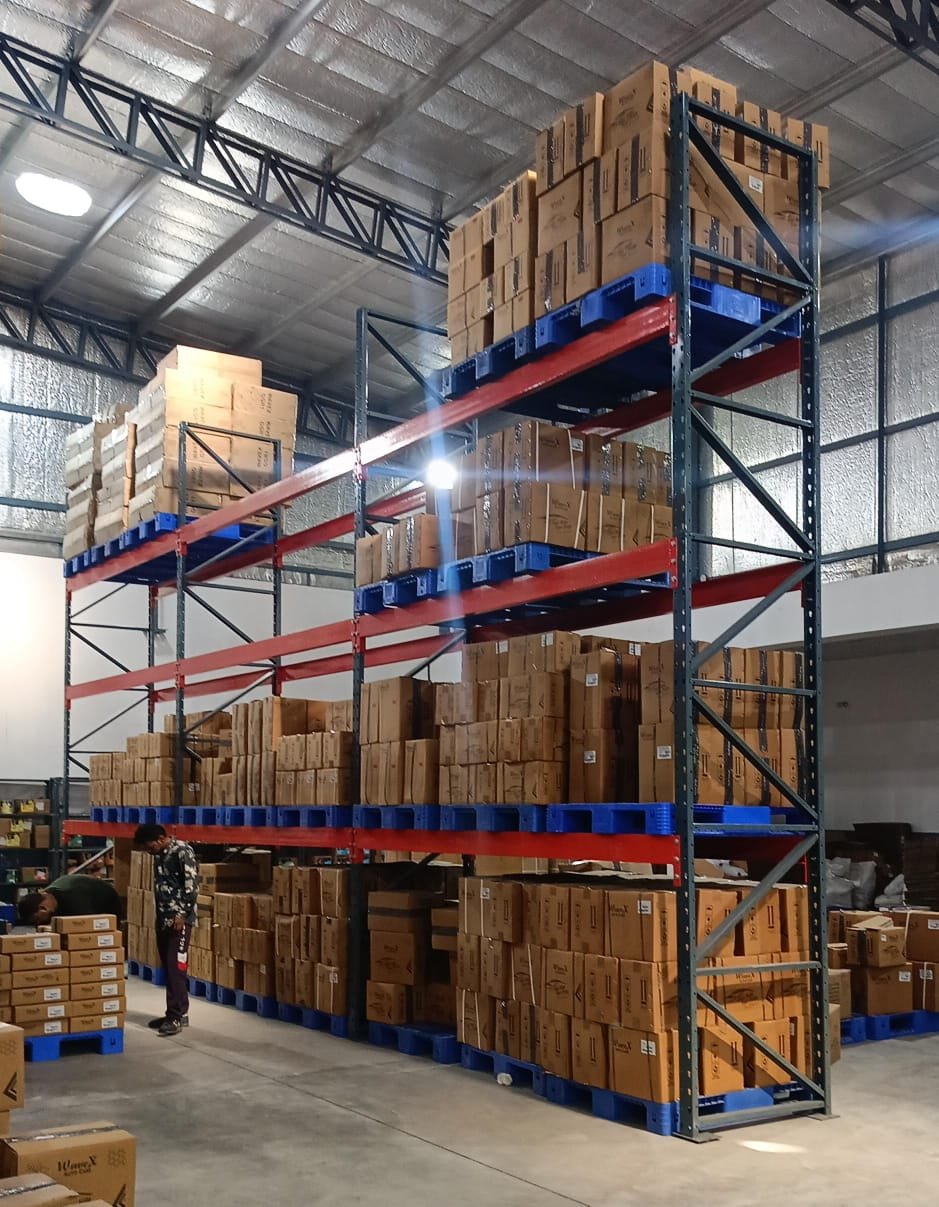

Heavy Duty racks with Pallets
Technical specification
Indicative ranges — final sizing is confirmed against your pallet data and building drawings.
| Type | Selective pallet racking (single & double deep) |
|---|---|
| Load per level | 500 kg – 5,000 kg per beam pair (UDL) |
| Upright height | 2,000 mm – 12,000 mm(clumped together every 3000mm) |
| Upright section | 75 / 100 / 120 mm, 1.6–2.5 mm thickness |
| Beam section | beam, 75 / 100 / 125 / 150 mm |
| Beam pitch | 50-75 mm adjustable slot pitch |
| Bay width | 1,800 mm – 3,600 mm (pallet dependent) |
| Frame depth | 600 mm – 1,800 mm |
| Finish | Powder coated, 60–80 micron DFT (galvanised optional) |
| Standard colours | Peace Grey uprights / Orange beams, or as specified |
| Accessories | Column guards, row-end barriers, pallet supports, GI sheet decks, safety pins |
| Documentation | Layout drawing, load chart, load-notice plate, test certificates |
Where pallet racking earns its keep
Questions we get asked before every order
Load rating is determined based on the required load per level, rack dimensions, number of levels, beam span, storage configuration, and loading method. Our engineering team evaluates these factors to specify an appropriate and safe rack capacity.
Standard systems in stock sections are dispatched in 2–3 weeks from drawing approval. Non-standard heights, galvanised finishes or large phased projects typically run 4–6 weeks.
Yes. Our own erection crews mark out, erect, plumb and anchor the system, then hand over a signed checklist with anchor torque values and the load chart.
That’s the point of the system. Beam levels move on a 75/50 mm pitch, and we keep standard sections in stock so you can add bays or change levels years later.
Every project ships with a layout drawing, load calculations, material test certificates and the load-notice plate artwork — the usual audit pack.
We supply and install across India, with crews mobilised from Ludhiana. Export enquiries are handled case by case.
Get a pallet rack quote
Share your pallet weight, footprint and clear height — we’ll come back with a layout and a price.
